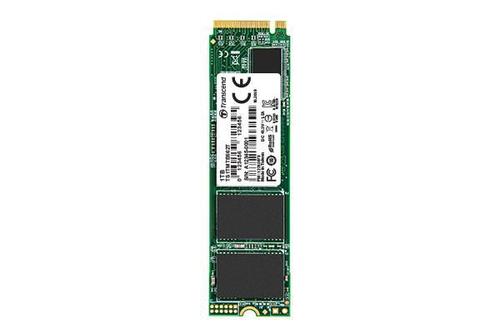

TRANSCEND Internal Solid State Drive

MTE662T PCIe M.2 SSD 512GB

• Firmware
  • Supports NVM command
  • SLC caching technology
  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
• Hardware
  • Compliant with RoHS 2.0 standards
  • Compliant with NVM Express specification 1.3
  • Compliant with PCI Express specification 3.1
  • Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
  • 8-channel (8CH) controller for ultra high performance
  • PCIe Gen 3 x4 interface
  • DDR4 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Key components fortified by default with Corner Bond technology
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Supports Transcend Scope Pro software

• Dimensions 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
• Weight 9 g (0.32 oz)
• Form Factor M.2
• M.2 Type 2280-D2-M (Double-sided)

• Bus Interface NVMe PCIe Gen3 x4

• Flash Type 3D NAND flash
• Capacity 512 GB

• Operating Voltage 3.3V±5%
• Operating Temperature 0°C (32°F) ~ 70°C (158°F)
• Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
• Humidity 5% ~ 95%
• Shock 1500 G, 0.5 ms, 3 axis
• Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

• Power Consumption (Operation) 7.0 watt(s)
• Power Consumption (Sleep) 1.0 watt(s)

• Sequential Read/Write (CrystalDiskMark) Read: up to 3,500 MB/s, Write: up to 2,700 MB/s
• 4K Random Read/Write (IOmeter) Read: up to 340,000 IOPS, Write: up to 355,000 IOPS
• Mean Time Between Failures (MTBF) 3,000,000 hour(s)
• Terabytes Written (TBW) up to 4,400 TBW
• Drive Writes Per Day (DWPD) 2 (3 yrs)

• Certificate CE/FCC/BSMI
• Warranty Three-year Limited Warranty
