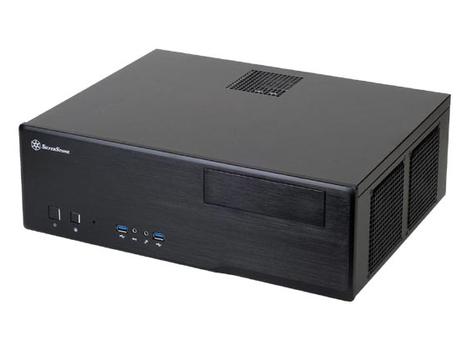

SILVERSTONE Grandia Gd05 Htpc Black
Du måste logga in för att kunna handla/se priser.
|
|
SILVERSTONE Grandia Gd05 Htpc Black
Artikelnr.:
SST-GD05B USB 3.0
-
Nätaggregat
0W
-
Typ
HTPC
-
Färg
Svart
|
Beskrivning
Specifikationer
GD05
The Grandia GD05 is a follow-up of the incredible GD04 as a chassis that combines years of SilverStone expertise in SFF (Small form factor) and HTPC (Home Theater Personal Computer) designs. It has the same beautifully proportioned exterior and powerful thermal capability that rivals the best tower chassis. However, the front panel of the GD05 was designed to be more flexible so that its 325mm depth can be utilized in more places than just home theaters. Even though GD05’s diminutive size allows it to easily integrate into any home theater cabinet, it can still accommodate an impressive list of standard components such as 5.25” device, two 3.5” hard drives, a 2.5” SSD, a standard ATX power supply, and two high-end graphics cards up to 11 inches. Cooling duty in the GD05 is handled by three filtered 120mm fans designed with the same positive air pressure to enable class-leading cooling efficiency, reduced dust buildup, and silent operation. To make installation simpler, there is even enough space for cable management to be easily accomplished without the need for short cabled or modular power supply. Coupled with special attention given to the order of installation, any user can quickly assemble or upgrade the GD05 with a small and powerful PC system.
Features:
- Three silent 120mm fans included
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Beautiful aluminum skin for classic appearance
- Incredible 325mm depth to fit comfortably inside home theater cabinet
- Designed with cable routing for easy installation
- Supports power supply up to 180mm long
- Support expansion cards up to 11 inches
- Support 2.5” hard drive or SSD (Solid-state drive)
Specifications:
|
Model No. |
SST-GD05B(Black) |
| SST-GD05B-USB3.0(Black) |
| -- |
| -- |
|
Material |
Aluminum skin over plastic front panel, 0.8mm SECC body |
|
Motherboard |
Micro-ATX,
DTX,
Mini-ITX |
|
Multimedia |
-- |
|
Drive Bay |
External |
5.25" x 1 |
| -- |
| Internal
|
3.5" x 2 , 2.5” x 1 or 3.5" x 1 , 2.5” x 2 |
|
Cooling System |
Front |
-- |
| Rear |
2 x 80mm fan slots (optional mounting) |
| Side |
Right: 2 x 120mm intake fans, 1200rpm, 20dBA
Left: 1 x 120mm intake fan, 1200rpm, 20dBA
Also compatible with 80mm fan |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot |
5 |
|
Front I/O Port |
USB 2.0 x 2 (GD05B only)
USB 3.0 x 2 (GD05B-USB3.0 only)
audio x 1
MIC x 1
|
|
Power Supply |
Support standard
PS2(ATX) |
|
Operating system support |
-- |
|
Expansion Card |
Support graphic cards up to 11 inches. |
|
Limitation of CPU cooler |
70mm (remove ODD if you want install up to 120mm) |
|
Limitation of PSU |
180mm (remove Left fan replacement as 80mm if you want install up to 220mm) |
|
Net Weight |
4.7kg |
|
Dimension |
440 mm (W) x 151 mm (H) x 325 mm (D) |
|
Extra |
support Kensington lock (v1.4 or after) |
| Formfaktor | HTPC |
| Modell | PC |
| Material | Gjuten aluminium, Plast, SECC |
| Produktens färg | Svart |
| Som stöds moderkorts formfaktorer | DTX,Micro ATX,Mini-ITX |
| Antal 3,5 "vikar | 2 |
| Antalet 5,25 "fack | 1 |
| Antal 2,5 "vikar | 2 |
| Antal interna 3,5 "platser | 2 |
| Antalet expansionsplatser | 5 |
| Sidoruta | Nej |
| Lämplig för | Hem / Kontor |
| Belysning | Nej |
| Bakplan stöder | Nej |
| Inbyggda högtalare | Nej |
| Transporthjul | Nej |
| Återställningsknapp | Ja |
| Maximal CPU-kylare höjd | 7 cm |
| Maximal PSU längd | 18 cm |
| Strömförsörjning ingår | Nej |
| Strömförsörjning plats | Botten |
| Antal USB 3.0 (3.1 Gen 1) typ A-portar | 2 |
| Ljudanslutning | Ja |
| Ljudutgång | Ja |
| Side fläktar installerade | 3x 120 mm |
| Maximal sidan fläktar | 3 |
| Maximal bakre fläktar | 2 |
| Bakre fläktar diametrar stöds | 80 mm |
| Flytande kylförmåga | Nej |
| Som stöds Hårddisk storlek | 2.5,3.5" |
| Inbyggd kortläsare | Nej |
| Antalet hårddiskar som stöds | 2 |
| Inbyggd hårddisk docka station | Nej |
| Bredd | 440 mm |
| Djup | 325 mm |
| Höjd | 151 mm |
| Vikt | 4,7 kg |
| Material tjocklek | 0,8 mm |
| På / av-knapp | Ja |
