SILVERSTONE Gd10 Htpc Black
Du måste logga in för att kunna handla/se priser.
|
|

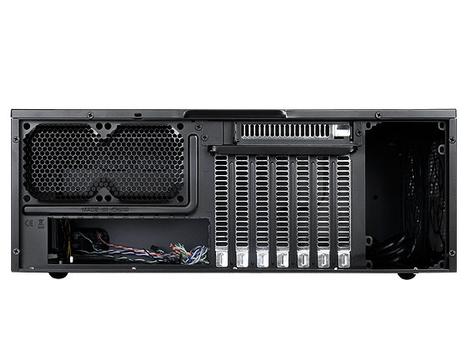

SILVERSTONE Gd10 Htpc Black
-
Nätaggregat
0W
-
Typ
HTPC
-
Färg
Svart
|
Beskrivning
Specifikationer
GD10
The Grandia GD10, along with GD09, is a culmination of SilverStone’s decade-long experience in HTPC case design and manufacturing into a product that every PC enthusiast can enjoy. The incredible efficiency in which it utilizes all available space results in a case that is close in size externally to Micro-ATX based GD04 and GD05, yet capable of fitting most important full size standard components including wider ATX motherboards (SSI-CEB) such as ROG or other gaming-centric models. All drive cages have been designed similarly to those from the popular ML03 case to provide maximum flexibility in drive configuration without the need for additional adapters. For cooling, all positive pressure and smooth airflow designs were retained from previous Grandia models while improvements were made to filter access for even easier maintenance. With the addition of a lockable front door, the GD10 offers an attractively sized case that is capable and user-friendly for those interested in building a system with extra security and application that exceeds typical PC or HTPC environments.
Features:
- Lockable front door ensures security of system and drives
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Support expansion cards up to 12.2 inches
- Support ATX motherboards
- Quick access filters included
- Incredible 362mm depth to fit comfortably inside home theater cabinet
- Drive cages with multi-purpose mounts eliminate need for adapters
Specifications
Model No. |
SST-GD10B (black) |
| -- |
| -- |
| -- |
Material |
Aluminum door with plastic front panel, 0.8mm steel body |
Motherboard |
SSI-CEB, ATX, Micro-ATX* |
Multimedia |
-- |
Drive Bay |
External |
5.25" x 1 (compatible with 3.5” x 1 or 2.5” x 2) |
| -- |
| Internal |
3.5" x 2 (one compatible with 2.5”), 2.5” x1 |
Cooling System |
Front |
-- |
| Rear |
2 x 80mm fan slot |
| Side |
Right:2 x 120mm intake fan, 900rpm, 18dBA
Left:1 x 120mm fan, 900rpm, 18dBA, compatible with 80mm fan |
| Top |
Expansion card vent |
| Bottom |
-- |
| Internal |
-- |
Expansion Slot |
7+1 |
Front I/O Port |
USB 3.0 x 2
audio x 1
MIC x 1
|
Power Supply |
Standard PS2(ATX)
220mm maximum, 180mm recommended |
Operating system support |
-- |
Expansion Card |
Support cards up to 12.2 inches, width restriction 5.25” |
Limitation of CPU cooler |
138mm
|
Limitation of PSU |
-- |
Net Weight |
4.8kg |
Dimension |
442mm (W) x 171mm (H) x 362mm (D), 27.4 liters |
Extra |
Support Kensington lock |
Support VESA Mount |
-- |
| Formfaktor | HTPC |
| Modell | PC |
| Material | Gjuten aluminium, Plast, Stål |
| Antalet 5,25 "fack | 1 |
| Antal 3,5 "vikar | 2 |
| Som stöds moderkorts formfaktorer | ATX,CEB,uATX |
| Produktens färg | Svart |
| Antal 2,5 "vikar | 1 |
| Sidoruta | Nej |
| Material tjocklek | 0,8 mm |
| Antalet expansionsplatser | 8 |
| Strömförsörjning ingår | Nej |
| Strömförsörjning plats | Sida |
| Antal USB 3.0 (3.1 Gen 1) typ A-portar | 2 |
| Ljudanslutning | Ja |
| Ljudutgång | Ja |
| Side fläktar installerade | 3x 120 mm |
| Side fläktar diametrar stöds | 80,120 mm |
| Maximal bakre fläktar | 2 |
| Bakre fläktar diametrar stöds | 80 mm |
| Som stöds Hårddisk storlek | 2.5,3.5" |
| Återställningsknapp | Ja |
| Bredd | 442 mm |
| Djup | 362 mm |
| Höjd | 171 mm |
| Vikt | 4,8 kg |
