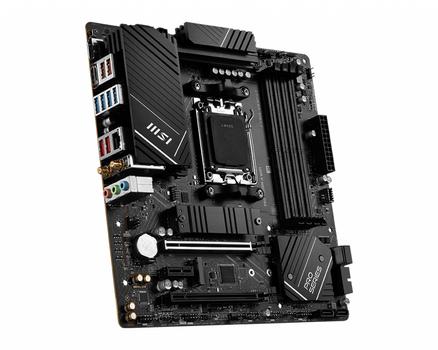

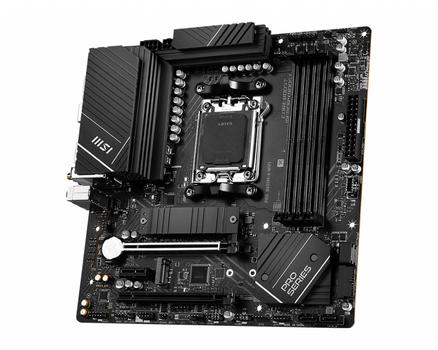

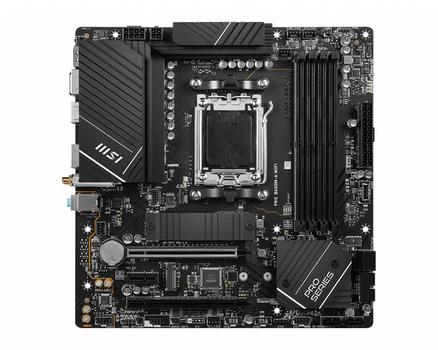

MSI Pro B650M-A Wifi Amd B650
Du måste logga in för att kunna handla/se priser.
|
|
MSI Pro B650M-A Wifi Amd B650
-
Processor-socket
Socket AM5
-
Chipset
AMD B650
-
M.2 Slot
2
-
Minnesplatser
4 x DIMM, DDR5
-
Maximal RAM-frekvens
6.4GHz
-
Max minne stöds
128GB
-
Formfaktor
micro ATX
|
Beskrivning
Specifikationer
PRO B650M-A WIFI
Features:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
Model Name
CPU Support - Supports AMD Ryzen™ 7000 Series Desktop Processors
CPU Socket
Chipset
Expansion Slots - 2x PCIe 4.0 x16 slots
- 1x PCIe 3.0 x1 slot
Display Interface - Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics
Memory Support - 4 DIMMs, Dual Channel DDR5-6400+MHz (OC)
Storage - 2x M.2 Gen4 x4 64Gbps slots,
- 4x SATA 6Gbps ports
USB ports - 5x USB 3.2 Gen 2 10Gbps (4 Type-A + 1 Type-C),
- 6x USB 3.2 Gen 1 5Gbps (6 Type-A),
- 4x USB 2.0
LAN
Wireless /
Bluetooth
- AMD® Wi-Fi 6E, Bluetooth 5.2
Audio - 8-Channel (7.1) HD Audio with Audio Boost

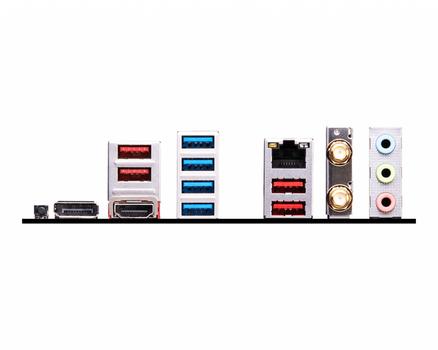

Connections
- USB 3.2 Gen 2 10Gbps (Type-A)
- 2.5G LAN
- Audio connectors
- DisplayPort
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- Wi-Fi / Bluetooth
- Flash BIOS Button
- HDMI™
| Processortillverkare | AMD |
| Processorsockel | AM5-sockel |
| Kompatibla processorer | AMD Ryzen 7000 Series |
| Stödd processor uttag | AM5-sockel |
| Minnestyper som stöds | DDR5-SDRAM |
| Antal minnesplatser | 4 |
| Minnets hastigheter | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximalt internminne | 128 GB |
| Lagringsenhetsgränssnitt som stöds | M.2, SATA |
| RAID-nivåer | 0, 1, 10 |
| USB 2.0 anslutning | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 0 |
| Antal SATA III kontakter | 0 |
| Ljudanslutning på framsidan | Ja |
| Kontakter på framsidan | Ja |
| ATX strömkontakt (24-pin) | Ja |
| CPU-fläktsanslutning | Ja |
| Chassits genomgångsanslutning | Ja |
| Antal USB 2.0 anslutningar | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 0 |
| Antal LAN (RJ-45) anslutningar | 1 |
| Kvalitet på VGA (D-Sub) porten | 0 |
| Antal HDMI-portar | 1 |
| HDMI-version | 2.1 |
| Antal DVI-D anslutningar | 0 |
| Hörlursutgångar | 1 |
| Linje in | Ja |
| Uttag för mikrofon/linje in | Ja |
| Nätverksansluten (Ethernet) | Ja |
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| LAN-styrenhet | Realtek RTL8125-BG |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-version | 5.2 |
| Komponent för | PC |
| Moderkort formfaktor | micro ATX |
| Moderkort, chipsetfamilj | AMD |
| Moderkortets chipset | AMD B650 |
| Ljudchipp | Realtek ALC897 |
| Ljudutgångskanaler | 7.1 kanaler |
| PC hälsoövervakning | Fan |
| Windows-operativsystem som stöds | Windows 11 x64 |
| PCI Express x16 (Gen 3.x)-kortplatser | 1 |
| Antal M.2 (M)-platser | 2 |
| Bredd | 243,8 mm |
| Djup | 243,8 mm |
