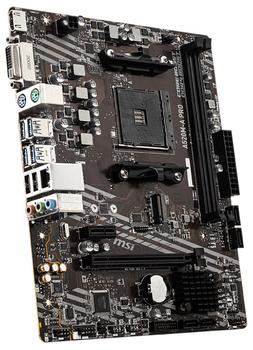

MSI A520M-A Pro Motherboard Amd
Artikelnr.:
A520M-A PRO AM4 2DDR4
-
Processor-socket
Uttag AM4
-
Chipset
AMD A520
-
M.2 Slot
1
-
Minnesplatser
2 x DIMM, DDR4
-
Maximal RAM-frekvens
4.6GHz
-
Max minne stöds
64GB
-
Formfaktor
micro ATX
|
A520M-A PRO
Features:
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Specifications:
CPU
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors
Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Expansion Slot
- 1x PCIe 3.0 x1 slot
- 1x PCIe x16 slot
Onboard Graphics
- 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
- 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- Maximum shared memory of 16 GB
Storage
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
- AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
- AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
- Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H Gigabit LAN controller
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
Back panel ports
- LAN port
- HDMI
- DVI-D
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0 Ports
- Audio Connectors
Dimensions
- Micro-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING
