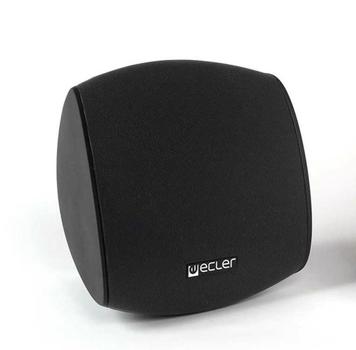

ECLER Audeo106 Høgtalare svart
Du måste logga in för att kunna handla/se priser.
|
|
ECLER Audeo106 Høgtalare svart
|
Beskrivning
Specifikationer
AUDEO 106
Features:
- 50 W RMS - 8 ohms
- Efficiency: 92,5 dB SPL 1 W / 1 m
- 8 ohm / 100 V (5, 7,5, 15 or 30 W) mode switch
- 6.5" woofer and 25 mm Tweeter
- Frequency response (-10 dB): 90 Hz to 20 kHz
- Dimensions: 242 x 242 x 163 mm
- Weight: 2.3 kg
AUDEO Series
The AUDEO loudspeaker series strikes the perfect balance between the intelligibility and sound reproduction quality requirements currently demanded in the professional audio installation and ever increasing demands with respect to aesthetics, design and integration into all types of architectural environments.
AUDEO has a balanced, innovative design, resulting from the collaboration between Ecler and the prestigious group Giugiaro Design during the conceptual and the external design phases of the speakers. This factor, together with its high quality sound reproduction, make this series the ideal solution for use in numerous sound projects: corporate and residential buildings, commercial premises, leisure centres, health centres, conference and meeting rooms, auditoriums, museums, etc.
This versatile series, which comes in three sizes (AUDEO 103, 106 and 108), and in black or white, is completed by its wall/ceiling supports which allow the cabling to be concealed and make it possible to install the speakers at low (8 ohms) or high impedance operation (100 V line).
In addition to the included wall bracket, the 103 and 106 models can use the DSTANDAUDEO desktop stand. If you need to mount the AUDEO speakers on a microphone stand, then the MSTANDAUDEO is the right accessory to use.
Features:
- Full range, 2-way acoustic boxes.
- Made of reinforced ABS
- Available in black or white
- 8 ohms / 100 V line operating switch
- Accessories for wall-mounting included
- IP 54 class for installing outdoors
- Protective grille at the front with anti-rust treatment
Specifications:
| |
AUDEO103 |
AUDEO106 |
AUDEO108 |
|
Ways |
2 |
2 |
2 |
|
Nominal low impedance |
8Ω |
8Ω |
8Ω |
|
Max RMS power |
25 W |
50 W |
100 W |
|
Program power |
50 W |
100 W |
200 W |
|
Nominal high impedance |
100 V LINE |
100 V LINE |
100 V LINE |
|
Power selector |
2.5 / 5 / 7.5 / 15 W |
5 / 7.5 / 15 / 30 W |
7.5 / 15 / 30 / 60 W |
|
Efficiency SPL 1W 1m |
90 dB |
92.5 dB |
94.5 dB |
|
Frequency response at –10dB @ 8Ω |
110 Hz ÷ 20 kHz |
90 Hz ÷ 20 kHz |
65 Hz ÷ 22 kHz |
|
Dimensions WxHxD (without accessories) |
132x134x110mm |
242x242x163mm |
300x310x223mm |
|
Weight |
1.45 kg |
2.3 kg |
3.75 kg |
| Rekommenderad användning | Universal |
| Högtalartyp | 2-vägs |
| Högtalarplacering | Golv, Stand-mountable, Bordsskiva/bokhylla, Väggfästningsbar |
| Disktanthögtalare diameter | 2,54 cm (1") |
| Woofer diameter (imperial) | 16,5 cm (6.5") |
| Antal tweeter förare | 1 |
| Antal woofer-drivenheter | 1 |
| Uteffekt (RMS) | 50 W |
| Frekvensområde | 90 - 20000 hz |
| Produktens färg | Svart |
| Material, hölje | Akrylnitrilbutadienstyren (ABS) |
| Anslutningsteknologi | Kabel |
| Bredd | 242 mm |
| Djup | 163 mm |
| Höjd | 242 mm |
| Vikt | 2,3 kg |
| Monteringsfästen ingår | Ja |
| Internationellt skydd (IP) kod | IP54 |
