DELOCK USB 3.0 Docking Station for 4 x SATA HDD / SSD with Clone Function
Du måste logga in för att kunna handla/se priser.
|
|
DELOCK USB 3.0 Docking Station for 4 x SATA HDD / SSD with Clone Function
-
Gränssnitt
SATA, SATA
-
Installerad
0GB
-
Max diskar
4
-
RAID
Nej
-
Typ
Dockning
-
Diskstorlek
3.5"
|
Beskrivning
Specifikationer

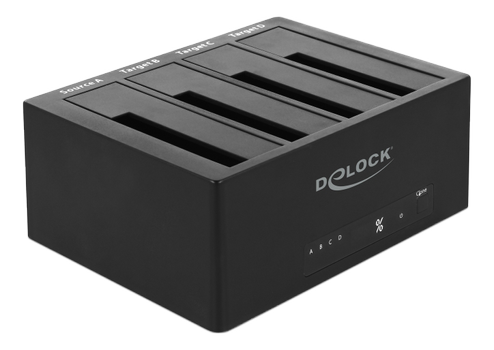

Delock USB 3.0 Docking Station for 4 x SATA HDD / SSD with Clone Function
This HDD / SSD Docking Station in by Delock enables an external connection of up to four 2.5″ or 3.5″ SATA HDDs / SSDs through the USB interface, as well as the simple exchange of the drives by Hot Swap.
It is also possible to connect a single hard disk to the computer by using the eSATA connector.
Four bays for HDD / SSD with clone function
Up to four HDDs or SSDs can be inserted and accessed simultaneously.
The clone function enables to copy the content of one HDD / SSD to one or more others without using a PC.
USB Type-C™ connection and separate power supply
Due to the USB port and the included USB cable, the docking station can easily be connected to the computer. In addition, the power supply included in the delivery content ensures a supply for the storage devices used.
Specifications:
- Connectors:
- 4 x SATA 6 Gb/s 22 pin receptacle
- 1 x USB 3.0 Type-B female
- 1 x eSATA 6 Gb/s 7 pin plug
- 1 x DC jack
- Chipset: Genesys Logic GL3523, JMicron JMS578
- Function key:
- 1 x Clone button
- 1 x On / Off switch
- For 2.5″ and 3.5″ SATA HDD / SSD
- Suitable for all SATA HDDs / SSDs up to SATA 6 Gb/s
- Data transfer rate up to:
- SuperSpeed 5 Gb/s,
- Hi-Speed 480 Mb/s,
- Full-Speed 12 Mb/s,
- Low-Speed 1.5 Mb/s
- 5 x LED indicator
- LED indicator for power, access and copy status
- Bootable (eSATA)
- Dimensions (LxWxH): ca. 166 x 127 x 65 mm
- Hot Swap, Plug & Play
Power supply specification
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2 A
- Output: 12 V / 6.5 A
- Ground outside, plus inside
Dimensions
- inside: ø ca. 2.1 mm
- outside: ø ca. 5.5 mm
- length: ca. 10 mm
System requirements
- Chrome OS
- Linux Kernel 3.17 or above
- Mac OS 10.14.2 or above
- Windows 7/7-64/8.1/8.1-64/10/10-64
- PC or laptop with a free USB Type-C™ port
Package content
- Docking station
- 1 x cable USB 3.0 A male to USB 3.0 B male, length ca. 80 cm
- External power supply
- User manual
| Lagringsmedia typ | HDD,SSD |
| Lagringsenhet gränssnitt | SATA |
| Lagringsenhet som stöds | 2.5,3.5" |
| Antalet lager som stöds enheter | 4 |
| Värdgränssnitt | USB 3.0 (3.1 Gen 1) Type-B |
| Likströmsingång | Ja |
| Maximal överföringshastighet | 6 Gbit/s |
| Produktens färg | Svart |
| Plug & Play-kompatibel | Ja |
| Indikationer | Energiljus, Status |
| På / av-knapp | Ja |
| Anslutning till PC | Ja |
| AC-inspänning | 100 - 240 V |
| Växelström Frekvens | 50 - 60 hz |
| Ström | 2 A |
| Utgångsspänning | 12 V |
| Uteffekt | 6,5 A |
| Bredd | 127 mm |
| Djup | 166 mm |
| Höjd | 65 mm |
| Inklusive nätadapter | Ja |
| Kabel inkluderad | AC,USB |
| Bruksanvisning | Ja |
| Windows-operativsystem som stöds | Ja |
| Linux operativsystem som stöds | Ja |
| Mac kompatibel | Ja |
| Mac-operativsystem som stöds | Ja |
