MULTIBRACKETS M VESA Gas Lift Arm Dual Side by Side Silver
Du måste logga in för att kunna handla/se priser.
|
|
MULTIBRACKETS M VESA Gas Lift Arm Dual Side by Side Silver
Artikelnr.:
7350073733972
|
Beskrivning
Specifikationer

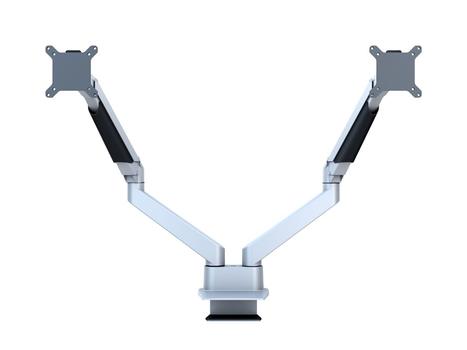

M VESA Gas Lift Arm Dual Side by Side Silver
There are few things that are so important in the workplace as your working position during an 8-hour shift. So save back, neck and eyes and let’s make it easy to use dual monitors in the office.
The M Gas Lift Dual Side by Side gas suspended monitor arm was designed by Multibrackets to optimize your productivity and improve ergonomics while at work.
The M Gas Lift Dual Side by Side is made out of a durable aluminum construction and driven by true gas suspension technique. This makes the screens "float" and they can be moved with near zero effort. Sleek and streamlined, the M Vesa Gas Lift Arm frees up space and allows positioning of your displays for greater productivity. Fingertip tilt provides smooth adjustment for two LCD´s in any direction. Easy move the screen from landscape to portrait position or move the screens close to the desk, high up, matching almost any wanted working position imaginable.
Supports VESA standards 75x75 and 100x100 (VESA 200x200 via an adapter) and holds screens weighing from minimum of 2kg and up to maximum of 10kg each.
The M VESA Gas lift Arms series utilize true gas based suspension technique. This German invented technology is used for a wide variety of industries and applications.
The gas technique to create its amazing effortless floating feel by balancing the pressure in the gas cartridge against the screens weight. This technique is not to be confused with the more economical and less functional spring technique found in more economical solutions on the market.
Available in Silver, Black and White.
Want to configure several LCD´s side by side?
Want to easily change the position of your LCD screens with near zero effort?
Tired of a work desk all jammed up by screens?
Want to change viewing angle for sitting or standing position, landscape or portrait mode?
| Specification |
| M VESA Gas Lift Arm Dual Side by Side Silver |
| Article No: | 7 350 073 733 972 |
| Colour: | Silver |
| Surface Finish: | Powder coating |
| Material: | Aluminum, Steel |
| For screen size: | 15"-32" * depending on screen type |
| VESA standard: | 75x75 100x100 mm |
| Screen weight: | Min:2 kg Max. 10 kg |
| Function: | Gas driven piston |
| Product size: | 1300x650x605 mm |
| Weight: | 6.8 kg |
| Tilt angle: | +75 - 45 degrees |
| Turn angle: | +90 - 90 degrees |
| Rotate: | 90 degrees |
| Installation: | Desk clamp, adjustable 10-50 mm |
| Cable Management: | Yes |
| Warranty: | 2 years |
Mounting |
|---|
| Maxvikt | 20 kg |
| Minsta skärmstorlek | 38,1 cm (15") |
| Maximal skärmstorlek | 81,3 cm (32") |
| Monteringssätt | Bord |
| Montage | Klämma |
| Monteringsgränssnitt kompatibilitet (min) | 75 x 75 mm |
| Monteringsgränssnitt kompatibilitet (max) | 100 x 100 mm |
| Gränsssnitt för panelmontering | 75 x 75,100 x 100 mm |
| Antal displayer som stöds | 2 |
| Skrivbordets tjocklek (min) | 1 cm |
| Skrivbordets tjocklek (max) | 5 cm |
Ergonomi |
|---|
| Höjdjustering | |
| Typ av höjdjustering | Manuell |
| Lutningsvinkel | -45 - 75° |
| Rotationsvinkel | 90° |
| Svängradie | 180° |
| Förbättrad kabelhantering | |
Design |
|---|
| Produktens färg | Silver |
| Material, hölje | Gjuten aluminium, Stål |
| Enkel installation | |
Vikt & dimension |
|---|
| Bredd | 1300 mm |
| Djup | 605 mm |
| Höjd | 650 mm |
| Vikt | 6,8 kg |
| Förpackningens bredd | 225 mm |
| Låddjup | 580 mm |
| Höjd | 165 mm |
| Vikt inkl. förpackning | 7,5 kg |
| Förpackningstyp | Låda |
Logistikdata |
|---|
| Fraktkartongens bredd | 24 cm |
| Fraktkartongens längd | 59,5 cm |
| Fraktkartongens höjd | 51,5 cm |
| Innerförpackningens bruttovikt | 23 kg |
| Antal produkter per innerförpackning | 3 styck |
