MULTIBRACKETS M Ceiling Mount Pro MBC1USD
Du måste logga in för att kunna handla/se priser.
|
|
MULTIBRACKETS M Ceiling Mount Pro MBC1USD
Artikelnr.:
7350073735785
|
Beskrivning
Specifikationer
Relaterade produkter

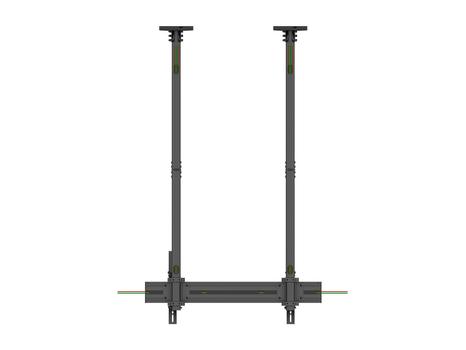

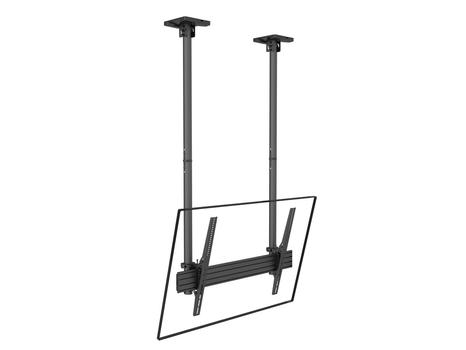

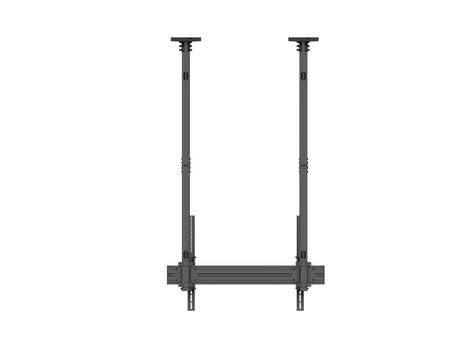

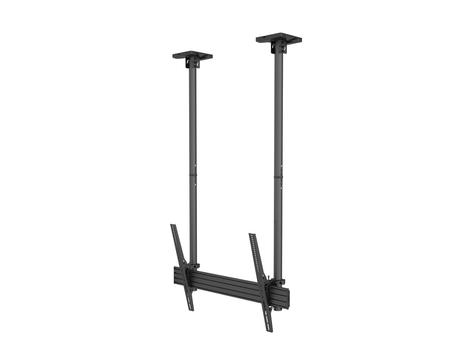

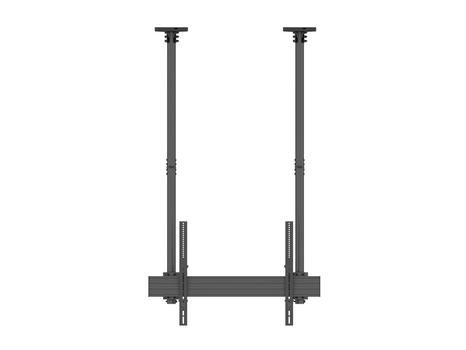

M Ceiling Mount Pro MBC1USD
Multibrackets Pro Series M Ceiling Mount Pro MBC1USD is our innovative - ready to be installed Single-Display Super Duty Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular,
easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1USD is no exception. The product provides the versatility and
flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result
worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount
is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes
hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Highlights
- Suitable for larger screens
- Holds 135kg max load
- A professional, flexible and modular product
- Includes VESA adapters for compatibility up to VESA 900x600
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation
- Ceiling plate included
- Portrait or landscape position of screen possible

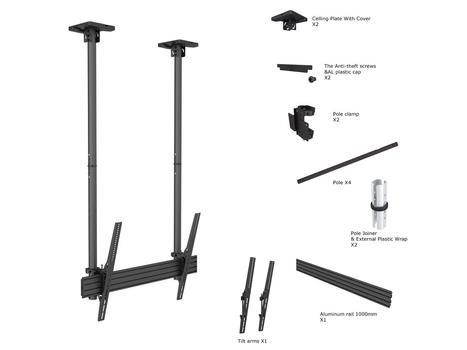

- Hardware kit included
Selected models are TÜV approved.
MB Pro Series is Design Protected by Multibrackets
| Specification |
| M Ceiling Mount Pro MBC1USD |
| Article No: |
7 350 073 735 785 |
| For screen size: |
40”-100" |
| Type: |
Single Side MBC1U |
| Universal & VESA standard: |
Adjustable from 100x100 to 900x600 max |
| Material: |
Steel, Aluminium |
| Color: |
Black |
| Surface Finish: |
Powder coating/Anodic Oxidation |
| Weight: |
12 kg |
| Measurements |
69x178x20 cm |
| Max Load: |
135 kg |

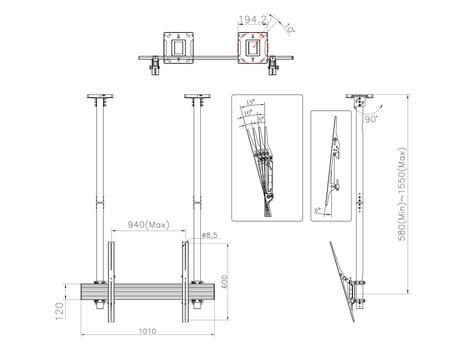

| Pillar length: |
Min: 580mm to Max: 1550 mm
from ceiling to VESA plate center
Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: |
Yes, -6° ~ +15° |
| Swivel: |
Yes, 90° |
| Rotate: |
Yes, ±4° |
| Cable Management: |
Yes |
| Options: |
Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: |
|
| Warranty: |
5 years |
| Antal displayer som stöds | 1 |
| Maxvikt | 135 kg |
| Minsta skärmstorlek | 101,6 cm (40") |
| Maximal skärmstorlek | 2,54 m (100") |
| Monteringssätt | Tak |
| Monteringsgränssnitt kompatibilitet (min) | 100 x 100 mm |
| Monteringsgränssnitt kompatibilitet (max) | 900 x 600 mm |
| Gränsssnitt för panelmontering | 100 x 100,900 x 600 mm |
| Höjdjustering | Ja |
| Typ av höjdjustering | Manuell |
| Höjdjusteringsintervall | 580 - 1550 mm |
| Lutningsvinkel | -6 - 15° |
| Vridningsvinkel | 90° |
| Rotationsvinkel | 8° |
| Förbättrad kabelhantering | Ja |
| Takmontering rörlängd (min) | 58 cm |
| Takmontering rörlängd (max) | 155 cm |
| Produktens färg | Svart |
| Material, hölje | Gjuten aluminium, Stål |
| Bredd | 690 mm |
| Djup | 200 mm |
| Höjd | 1780 mm |
| Vikt | 15,3 kg |
| Aluminiuminnehåll vikt | 2,4 kg |
| Stål-innehåll vikt | 15,3 kg |
| Övriga metaller innehåll vikt | 0 g |
| Förpackningens bredd | 233 mm |
| Låddjup | 831 mm |
| Förpackningens höjd | 188 mm |
| Vikt inkl. förpackning | 16,1 kg |
| Antal per förpackning | 1 styck |
| Vikt papper-/kartongförpackning | 700 g |
| Metallförpackningens vikt | 0 g |
| Plastförpackningens vikt | 80 g |
| Fraktkartongens bredd | 20,5 cm |
| Fraktkartongens längd | 102 cm |
| Fraktkartongens höjd | 15 cm |
| Innerförpackningens bruttovikt | 14 kg |
| Antal produkter per innerförpackning | 1 styck |
