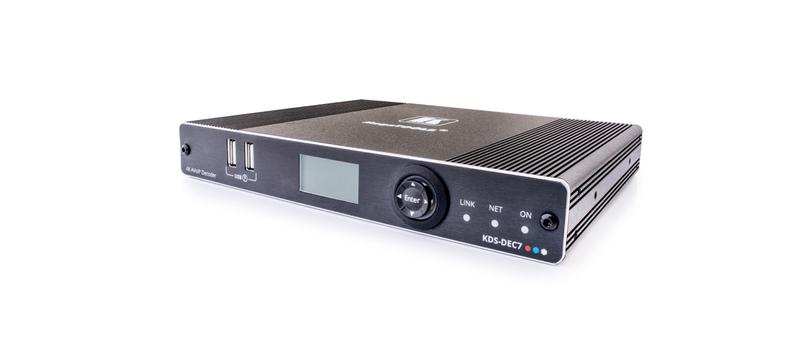

KRAMER KDS-DEC7 | 3840x2160 JPEG 2000 1GbE Mottagare (Rx)

KDS-DEC7 High–performance, highly–scalable, AVoIP Decoder for 4K60 4:2:0, HDR10 over 1G network

Features:

• Outstanding end–user experience
• Ideal for large–scale deployments
• Robust security
• Simple planning and rollout
• Managed by KDS-7-MNGR

Specifications:

• • INPUTS
  • 1 HDMI: On a female HDMI connector
• OUTPUTS
  • 1 HDMI: On a female HDMI connector
• PORTS
  • 2 Ethernets: On R–J45 connectors
  • 1 Balanced Audio: On a 5–pin terminal block connector
  • 1 RS-232: On a 3–pin terminal block connector
  • 1 IR: On a 3.5mm TRS connector
  • 2 USB: On USB–A connectors
• VIDEO
  • Compression Standard: JPEG based, private stream
  • Max Resolution: 4K60 4:2:0 or 4K30 4:4:4
  • HDR 10: Up to 4K30 4:2:2 12 bit
• USER INTERFACE
  • Indicators: LINK, NET and ON LEDs, front panel LCD Display
  • Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
• POWER
  • PoE on LAN(PoE) port
  • 24V DC
  • Consumption: 6W
• ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
  • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
  • Humidity: 10% to 90%, non–condensing
• GENERAL
  • Product Dimensions: 18.9cm x 14.5cm x 2.76cm (7.4" x 5.7" x 1") W, D, H
  • Shipping Dimensions: 31.2cm x 17.9cm x 7.6cm (12.2" x 7.04" x 2.9") W, D, H
  • Product Weight: 0.67kg (1.4lbs) approx
  • Shipping Weight: 0.93kg (2.05lbs) approx
• PRODUCT DIMENSIONS
  • 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H
• PRODUCT WEIGHT
  • 0.7kg (1.5lbs) approx.
• SHIPPING DIMENSIONS
  • 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H
• SHIPPING WEIGHT
  • 0.9kg (2.1lbs) approx.
