AKASA Computer Cooling System
Du måste logga in för att kunna handla/se priser.
|
|
AKASA Computer Cooling System
Artikelnr.:
AK-CC7122BP01
-
Använd område
Processor
-
Fan diameter
7.5cm
|
Beskrivning
Specifikationer
AK-CC7122BP01

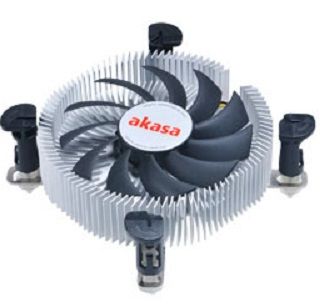

Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3 CPU’s. The low profile design with embedded fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.
Aluminium heatsink and twin ball bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.
Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775, LGA1155 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. Pre-applied high performance thermal compound ensures clean and easy installation.
- Hi-engineered aluminium heatsink
- Multi-directional fins for maximum system cooling
- Embedded 8cm PWM fan with long life twin ball bearing
- Intel approved push pins provide maximum compatibility
- Dual mounting for Intel LGA775, LGA1155 and LGA1156 platforms
- High performance thermal interface is pre-applied
- Total height only 26mm
Specification
| Socket type |
Intel LGA775 , LGA115X |
| Cooler dimension |
85.2 x 87.2 x 26 mm |
| Heatsink material |
Aluminum |
| Weight |
152.8g |
| Installation |
Push pins |
| Fan dimension |
∅75 x 10 mm |
| Fan speed |
600 - 3000 RPM (PWM controlled) |
| Max airflow |
23.45CFM |
| Max air pressure |
1.81 mmH2O |
| Noise level |
30.75dB(A) |
| Current rating |
0.19 A |
| Voltage rating |
12V DC |
| Bearing type |
Twin ball |
| Fan life expectancy |
50,000 hours |
| Fan connector |
4pin PWM |
| Product code |
AK-CC7122BP01 |
| Lämplig för | Processor |
| Modell | Kylare |
| fläktdiameter | 7,5 cm |
| Stödd processor uttag | LGA 1156 (Socket H) |
| Kompatibla processorer | Intel® Core™ i3 |
| Rotationshastighet (min) | 600 RPM |
| Rotationshastighet (max) | 3000 RPM |
| Ljudnivå (hög hastighet) | 30,75 dB |
| Maximalt luftflöde | 23,45 cfm |
| Maximalt lufttryck | 1,81 mmH2O |
| Medeltid mellan fel (MTBF) | 50000 h |
| Produktens färg | Gjuten aluminium, Blå |
| Material | Gjuten aluminium |
| Spänning | 12 V |
| Uppskattad strömförbrukning | 0,19 A |
| Bredd | 87,2 mm |
| Djup | 26 mm |
| Höjd | 85,2 mm |
| Vikt | 152,8 g |
Då vi sammankopplar vårt lager med flera externa leverantörer kan det ibland uppstå en viss prisskillnad vid beställningar som innehåller flera antal av samma artikel. I dessa undantagsfall kommer ni att kontaktas av er säljare för information och alternativ.
